Gotrax WG1 Electric Wiggle Cart Battery & Charger
The Gotrax WG1 uses a 12V 4.5Ah lead-acid battery with a red plug connector and a 12V 0.8A charger.
You need:
a 12V battery (details below) and a 12V charger (details below)
Tip: Before buying, check that your old battery's voltage and size match.

Battery
12V 4.5Ah lead-acid battery that connects with a red plug. Match the voltage, Ah, size and connector on your old battery's label, or contact Gotrax support about a replacement.
Charger
Gotrax's charger puts out 12V 0.8A. The charging port is at the back of the car. First charge 4 to 6 hours; after that 6 to 7 hours, and never more than 10. Match the output voltage and plug on your old charger's label.
How to match your parts
Battery
Read your old battery's label (volts and Ah). Check the metal tabs: narrow (F1, 3/16 in), wide (F2, 1/4 in), or a plug. Count how many batteries your car has, and measure the size.
Charger
Read the OUTPUT line on your old charger (volts and amps) and match its plug shape. Lead-acid and lithium batteries need different chargers; never mix them.
Specs
| Model line | Wiggle Car |
|---|---|
| Product number | WG1 |
| Voltage | 12V |
Other Wiggle Car models
- aigo E7 Joyride Electric Wiggle CarE7 · 21.6V

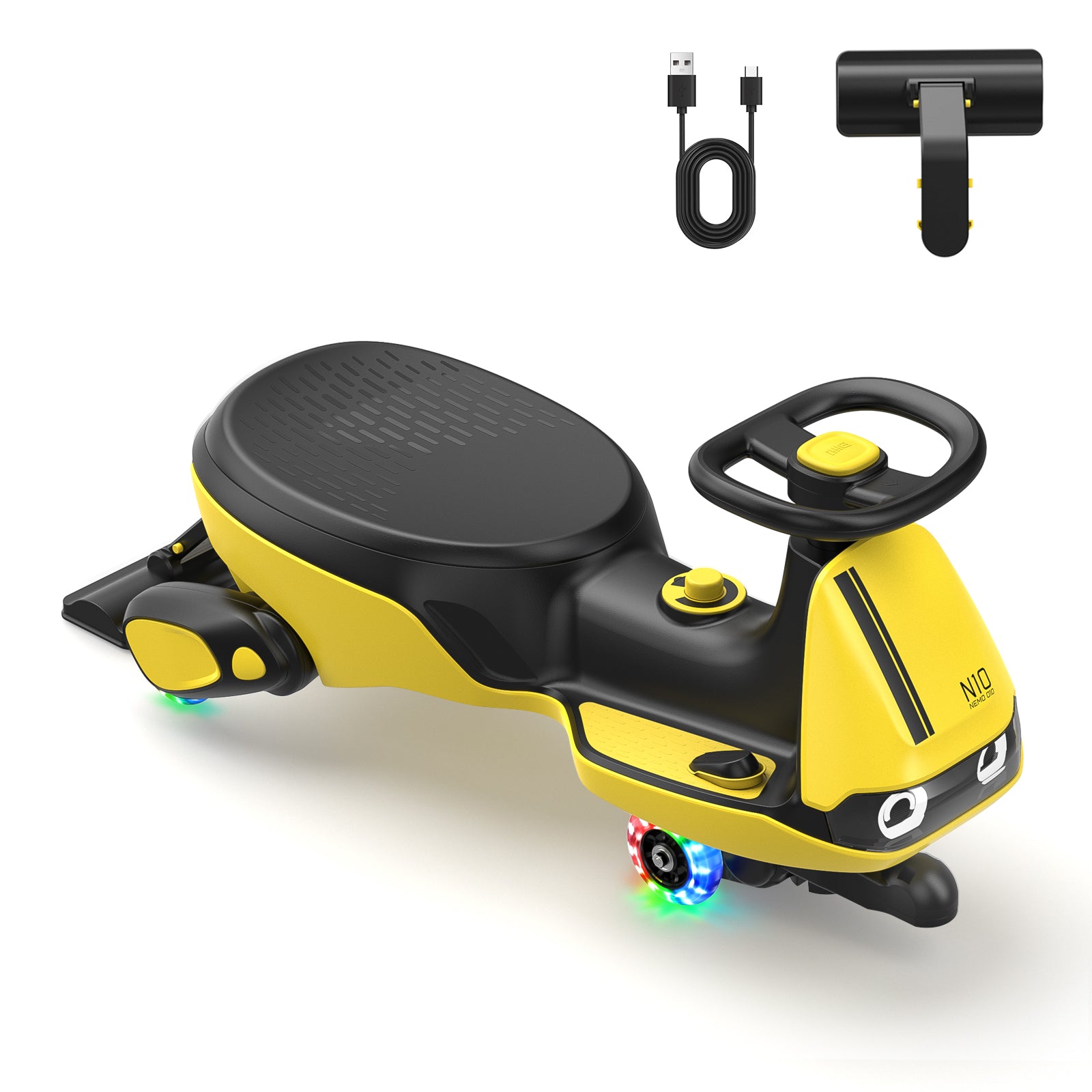

- FanttikRide N10 Classic Electric Wiggle CarN10 Classic · 6V

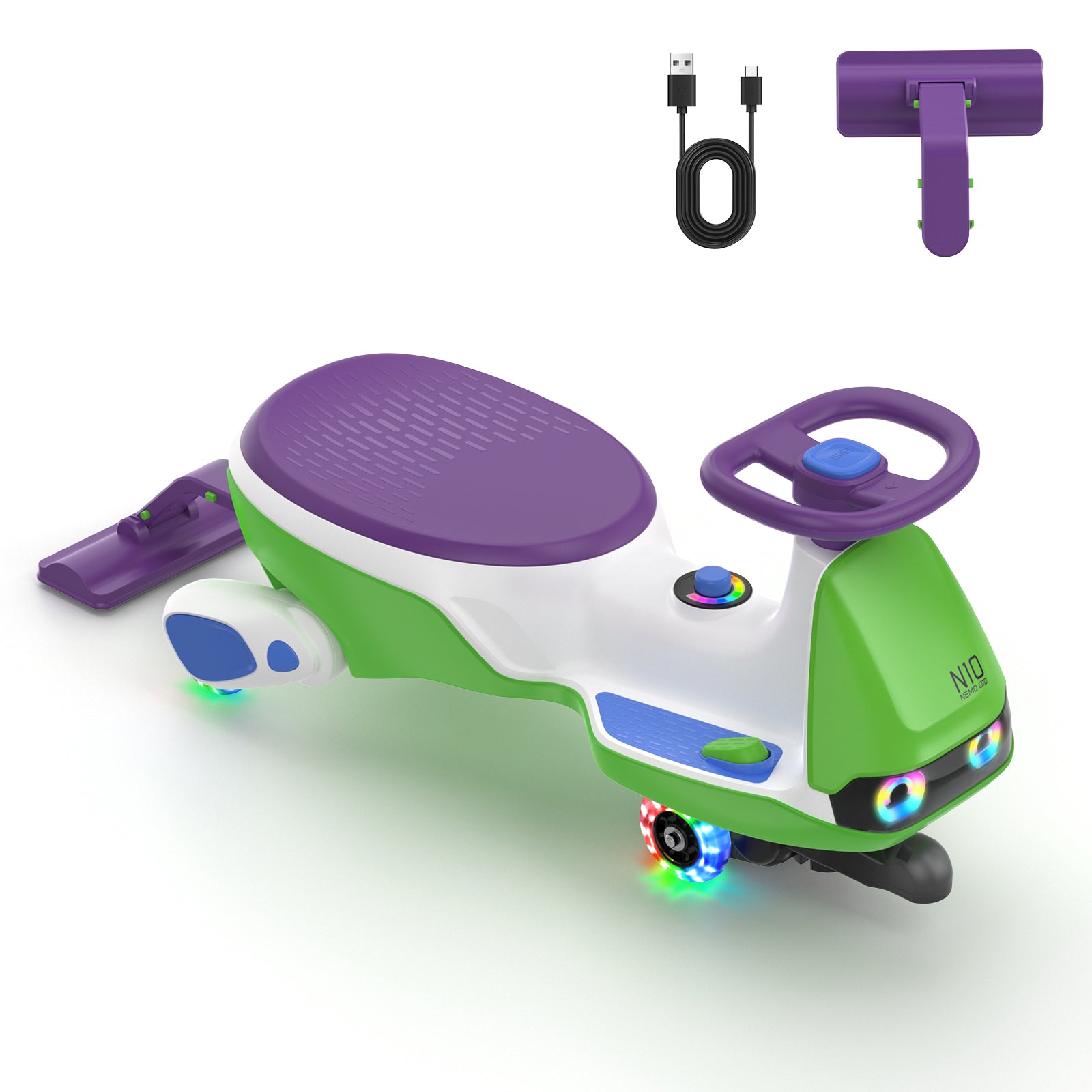

- FanttikRide N10 Pro Electric Wiggle CarN10 Pro · 12V
